Zoom H6
Recorders and Mixers
Hire Costs
£25 (ex VAT)
Per Day
Per Day
£75 (ex VAT)
Per Week
Per Week
3+ weeks POA
Collect from Welsh Back the afternoon before (from 4pm), return by 11am the day after. Delivery on request. Prices ex VAT.
More InfoOften hired with the Zoom H6
-
RØDE NTG5 £20 a day
-
Sennheiser MKH 50 £30 a day
-
COS 11 Lavalier Mic £10 a day
-
Rode 3m Boom Pole £8 a day
-
XLR 5m £1 a day
-
Headphones & Cable £4 a day
At a Glance
A versatile and portable field recorder!
FAQ
OVERVIEW

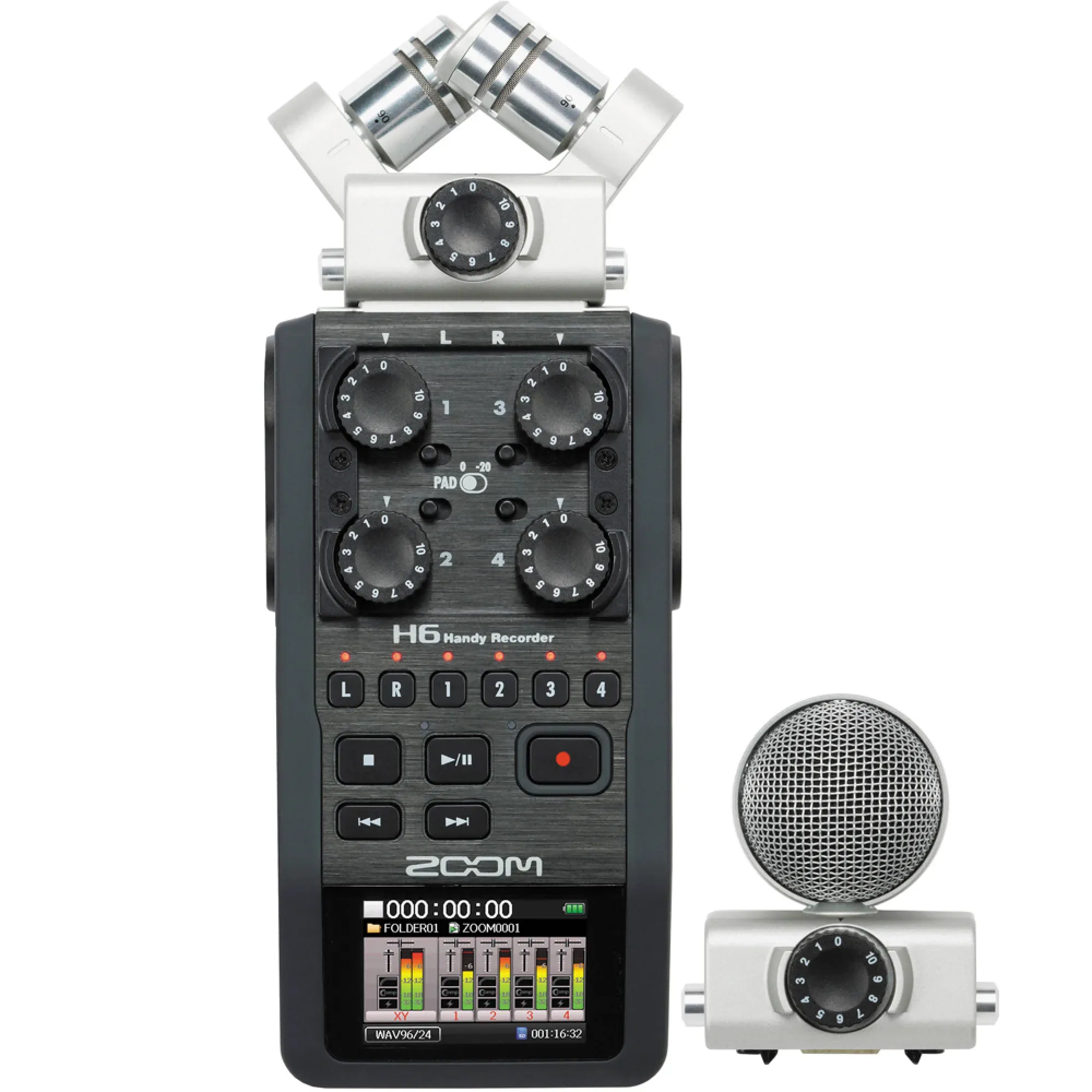

The Zoom H6 is the perfect audio recorder for almost all applications. It features 4 XLR inputs, each with the option for phantom power. As well as an input for one of the Zoom's 'capsules'. The built-in preamps provide amazing, high-quality sound. recording.
The Zoom H6 comes with 2 microphone capsules:
- XYH-6 X/Y Capsule: The H6's included X/Y capsule employs two angled high-quality unidirectional mics which are sensitive to signals coming from the front but less to signals coming from the sides and rear. X/Y recording is optimum when you want to cover a wide area yet still capture a strong center image, making it the perfect choice for all types of live stereo recording.
- MSH-6 MS Capsule: Welcome to “Mid-Side” recording, a whole new level of precision in your ability to shape the sound. The H6's provided MS Capsule contains dual mic elements – a forward-facing, unidirectional mic (the “Mid”) and a side-facing, bi-directional mic (the “Side”). Together with the H6's onboard MS decoder, they capture a fully mono-compatible stereo image that can actually be adjusted after recording – ideal for film, video, and television projects.
INCLUDED
- 1x H6 Hand Held Recorder
- 1x XYH-6 X/Y mic capsule
- 1x MSH-6 MS mic capsule
- 1x SD card
- 1x WSH-6S Foam Windscreen
- 1x USB Cable
- 1x Case
[requires AA size (LR6) battery x 4]
TECH SPECS
| Recording media | |
| 16MB–2GB SD cards | |
| 4GB–32GB SDHC cards | |
| 64GB–128GB SDXC cards | |
| Inputs L/R | |
| XY mic (XYH-6) | |
| Mic Type: | Unidirectional |
| Sensitivity: | –41 dB, 1 kHz at 1 Pa |
| Input Gain: | –∞ to 46.5 dB |
| Maximum Sound Pressure Input: | 136 dB SPL |
| [MIC/LINE IN] | |
| Connector: | 1/8" stereo mini jack |
| Input Gain: | –∞ to 46.5 dB |
| Input Impedance: | 2 kΩ |
| Plug-in Power: | 2.5V supported |
| MS mic (MSH-6) | |
| Mic Types: | Unidirectional and bi-directional |
| Sensitivity: | –37 dB, 1 kHz at 1 Pa (unidirectional),–39 dB,1 kHz at 1 Pa (bi-directional) |
| Input Gain: | –∞ to 42.5 dB |
| Maximum Sound Pressure Input: | 120 dB SPL (unidirectional),122 dB SPL (bi-directional) |
| Inputs 1 to 4 | |
| Connectors: | XLR/TRS combo jacks |
| (XLR: | 2 hot / TRS: TIP hot) |
| Input Gain (PAD OFF): | –∞ to 55.5 dB |
| Input Gain (PAD ON): | –∞ to 35.5 dB |
| Input Impedance | 6.8kΩ |
| Maximum Input Level: | +22 dBu (PAD ON) |
| Phantom Power: | +12V / +24V / +48V |
| Equivalent Input Noise (EIN): | –120 dBu or less |
| Outputs | |
| Line Out | |
| Connector: | 1/8" stereo mini jack |
| Rated Output Level: | –10 dBu (when output load impedance is 10 kΩ or more) |
| Phone Out | |
| Connector: | 1/8" stereo mini jack |
| Output Level: | 20 mW + 20 mW (into 32Ω load) |
| Built-in Speaker | 400 mW/8 Ω mono speaker |
| Recording Formats | |
| [WAV setting] | |
| Sampling Frequency: | 44.1/48/96kHz |
| Bit Rate: | 16/24-bit (Mono/Stereo, BWF-compliant) |
| Maximum Simultaneous Recording Tracks: | 8 tracks (6 tracks + L/R backup) |
| Backup recording: | 12dB lower than set L/R input gain |
| [MP3 setting] | |
| Sampling Frequency: 44.1kHz Bit Rate: | 48–320 kbps |
| Maximum Simultaneous Recording Tracks: | 2 tracks |
| Recording Time | |
| (with 2GB card) | 03:08:00 (44.1kHz/16-bit WAV) |
| 34:43:00 (128kbps MP3) | |
| Display | 2.0-inch full-color LCD (320 x 240 pixels) |
| USB | |
| [Mass Storage Class operation] | |
| Class: USB2.0 High Speed | |
| [Audio Interface operation: Multi-track mode] | |
| Class: | USB2.0 High Speed |
| Inputs / Outputs: | 6 / 2 |
| Sampling Frequency: | 44.1/48/96kHz |
| Bit Rate: | 16/24bit |
| Note: | Use with Windows requires a driver, but Macintosh does not. |
| [Audio Interface operation: Stereo mode] | |
| Class: | USB2.0 Full Speed |
| Inputs / Outputs: | 2 / 2 |
| Sampling Frequency: | 44.1/48kHz |
| Bit Rate: | 16 bit |
| Note: | iPad operation supported in stereo mode only. |
| Battery Life | |
| (with alkaline battery) | |
| XY mic, 44.1kHz/16-bit (stereo x 1): | 21 hours |
| XY mic and Inputs 1, 2, 3 and 4 used,96kHz/24-bit(stereo x 3): | 9 hours 45 minutes |
| Note: | The above times are estimates. Approximate continuous recording times when using battery power were calculated using our own testing method. They may differ greatly depending on operating conditions. |
| Power | AA size (LR6) battery x 4 |
| AC adapter: | AD-17 (DC5V/1A/USB-type) (optional) |
| USB bus power | |
| Dimensions | H6: 77.8mm（W）x 152.8mm（D）x 47.8mm（H） |
| XYH-6: 78.9mm（W）x 60.2mm（D）x 45.2mm（H） | |
| MSH-6: 58.0mm（W）x 67.6mm（D）x 42.1mm（H） | |
| Weight H6： | 280g (without batteries) |
| XYH-6: | 130g |
| MSH-6： | 85g |
INSURANCE / REPLACEMENT VALUE
£265.83 excl. VAT and Shipping (CVP List Price October 2018)
